NOTE: Not for use with ZEX control box's

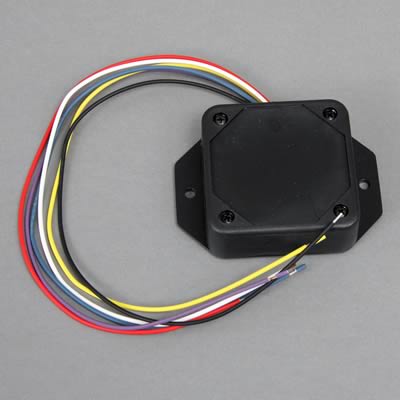

This 2 channel RPM activated window switch (RPMWS) also has an integrated throttle-position activation switch (TPAS)! This attaches to your Throttle position sensor to read the output voltage and determine if the engine is at Wide open throttle.  The TPAS accepts all analog throttle-position sensor signals as well as a “hot” or “grounded” wide-open-throttle (WOT) switch. The unit accepts most tach signals, including low-voltage and irregular signals such as those found on many V-10s.

Both channels have their own settable ON and OFF points. The internal TPAS can be configured to prevent the RPMWS channels from activating unless you are at WOT.

The RPM WINDOW SWITCH requires 9~18 volts to operate correctly. The output lines switch ground when activated (ON) and have a maximum current rating of 1 amp. All this and only the size of a deck of cards.

Features:
* 2 independent Window switch channels
* Integrated wide-open-throttle detection
* Self learing TPS signal (Wide Open Throttle)
* Supports low voltage tach signals as low as 3 volts
* Works with irregular tach signals such as Ford mustang! No tach adaptor needed!

* Push-button programming with integrated LED digital display, no computer needed!


NOTE: A RELAY MUST BE USED ON THE WINDOW SWITCH OUTPUTS! See our electical section for a relay if you need one!

Package size: 2.25" x 2.25" X 1.0"
